I'm pushing maps through from MapInfo Pro with layers that have display overrides so that the symbols display at different sizes at different zoom ranges. These display overrides do translate over into SSA (woohoo!), however the legend still automatically opens them all from the drop down list of each layer in SSA. I don't want this as it is ugly and I do not need the information. Is there a way to remove these from displaying in the legend altogether, or if not, to not have them/the drop down list always automatically show up upon ticking on and off the map/layer.

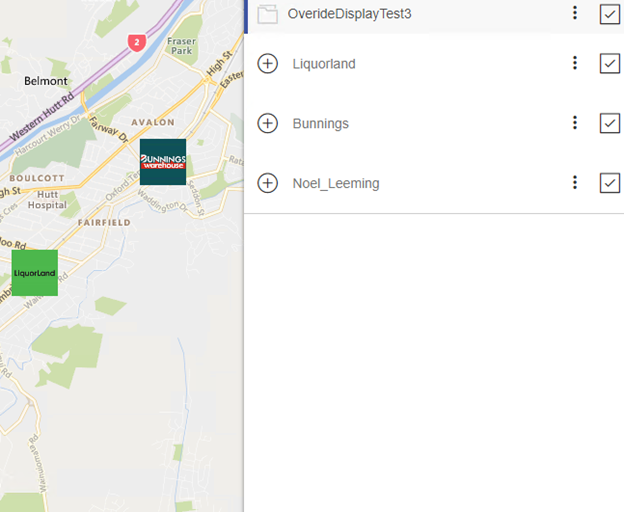

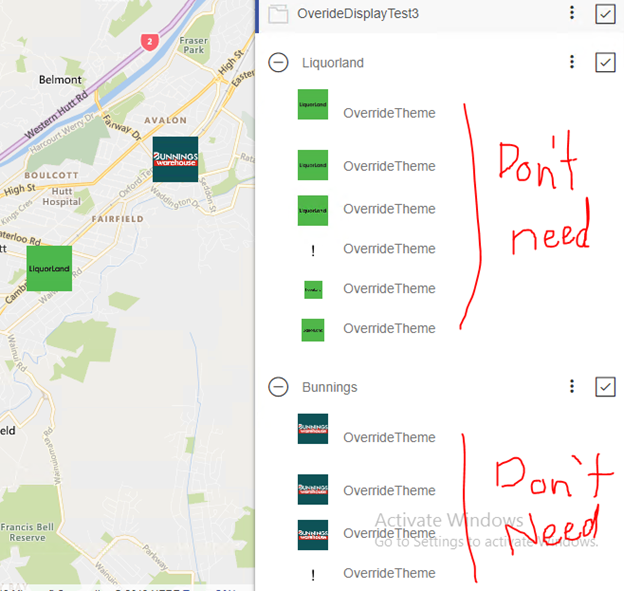

Below are some screenshots to help visualise my problem:The legend upon tick on the map. Same result from individually turning on each layer:The legend upon minimising each layer individually to remove the display overrides showing. This would be acceptable if the map legend displayed like this upon turning on:
For what it's worth, I've seen this annoying behaviour here at Southwark as well. I'll look forward to hearing what PB has to say about it.
Corporate GIS Manager
2nd floor, zone B
160 Tooley Street
London, SE1 2QH
Tel: (0207 52) 55409
Southwark Maps - public facing mapping service
In My Area
Hi Peter,That behaviour you described for the layer legend would be an good functionality to fix this behaviour. Alternatively/Additionally, you could have a static display for the layer legend, chosen by the admin. This static option would allow for the legend to remain set and not have the layer legend symbol change sizes as you zoom in. This would be ideal for situations where only one symbol is used throughout the override displays, however your suggestion would be great for situations with multiple different symbols.
Thank you for responding and giving insight into the situation. Are there any plans for this functionality to be incorporated into SSA in the near future? Or is there any road map where this functionality is planned for development?Cheers,Will Tilsley.
