SSA 2108.2 Map Name Alias (Projects UI)

  • 1.  SSA 2108.2 Map Name Alias (Projects UI)

    Posted 03-21-2019 18:43
    Hi Guys,

    Have just upgraded to latest SSA 18.2.  Something I've noticed is that the Alias map names I had in SSA 12.2 have disappeared and I can't see a way of changing this in the Projects UI back to friendly name.  Has this functionality been removed since the previous version?

    Eg.   Live_Address Map (Spatial Manager)  --->>>>   Address Map  (SSA Map screen)

    Thanks in advanced

    Tim




    ------------------------------
    Tim Warfe
    GIS Officer
    MOORABOOL SHIRE COUNCIL
    ------------------------------


  • 2.  RE: SSA 2108.2 Map Name Alias (Projects UI)

    Posted 03-21-2019 19:07
    Did you apply the S01 patch, Tim?  That should do the trick.

    ------------------------------
    James Nolet
    Dooley Mitchell & Morrison Pty Ltd
    ------------------------------



  • 3.  RE: SSA 2108.2 Map Name Alias (Projects UI)

    Posted 03-21-2019 19:29
    Hi @James Nolet, we applied that patch.  SSA 18.2 S01.

    Is there a special way of doing it that I may be missing??   Can you please give me a screenshot??

    Cheers

    Tim​

    ------------------------------
    Tim Warfe
    Knowledge Community Shared Account
    Shelton CT
    ------------------------------



  • 4.  RE: SSA 2108.2 Map Name Alias (Projects UI)

    Posted 03-21-2019 20:02
    Hi Tim,

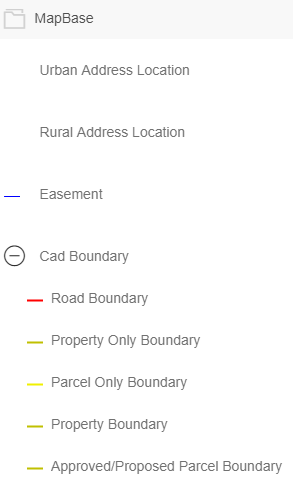

    The friendly names I had applied in 12.2 came through after the upgrade, as shown:

    SSA Map Legend

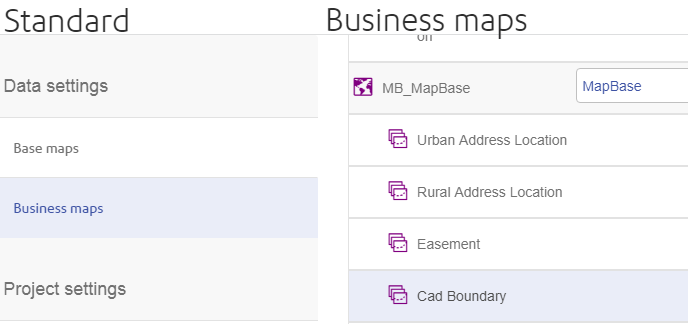

    Within Project Settings, you can only specify a friendly name for the map - i.e. MB_MapBase is given a friendly name of "MapBase" in the below image:
    SSA Project Settings

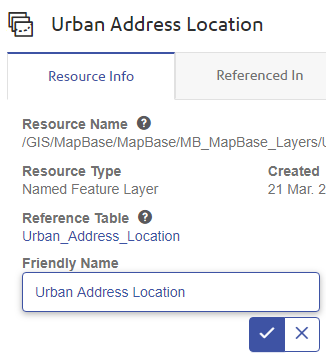

    Friendly names for individual layers is done within Spatial Manager:
    SM Friendly Name

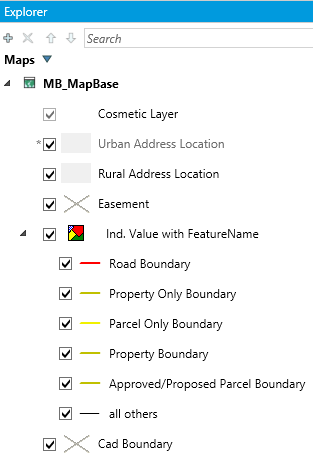

    Or in the MapInfo workspace prior to upload:
    MI Legend

    ------------------------------
    James Nolet
    Dooley Mitchell & Morrison Pty Ltd
    ------------------------------



  • 5.  RE: SSA 2108.2 Map Name Alias (Projects UI)

    Posted 03-21-2019 20:14
    Thanks @James Nolet​,

    I don't see this bit:-   (Where I can edit - "MapBase"  text box in your example)

    thumbnail image

    Maybe we don't have all of the patches applied??

    Tim

    ------------------------------
    Tim Warfe
    GIS Officer
    MOORABOOL SHIRE COUNCIL
    ------------------------------



  • 6.  RE: SSA 2108.2 Map Name Alias (Projects UI)

    Posted 03-21-2019 20:21
    I believe this was one of the issues with the 2018.2 release, fixed in the latest patch.  To check your version you can log into SSA Admin and check the status bar at the bottom of the screen:

    SSA Admin Version

    ------------------------------
    James Nolet
    Dooley Mitchell & Morrison Pty Ltd
    ------------------------------



  • 7.  RE: SSA 2108.2 Map Name Alias (Projects UI)

    Posted 03-21-2019 20:25
    Thanks heaps for your help James.  I'll follow this up with support.

    ------------------------------
    Tim Warfe
    GIS Officer
    MOORABOOL SHIRE COUNCIL
    ------------------------------



  • 8.  RE: SSA 2108.2 Map Name Alias (Projects UI)

    Posted 03-21-2019 20:37
    That's OK!  I'm glad I could help!

    ------------------------------
    James Nolet
    Dooley Mitchell & Morrison Pty Ltd
    ------------------------------
